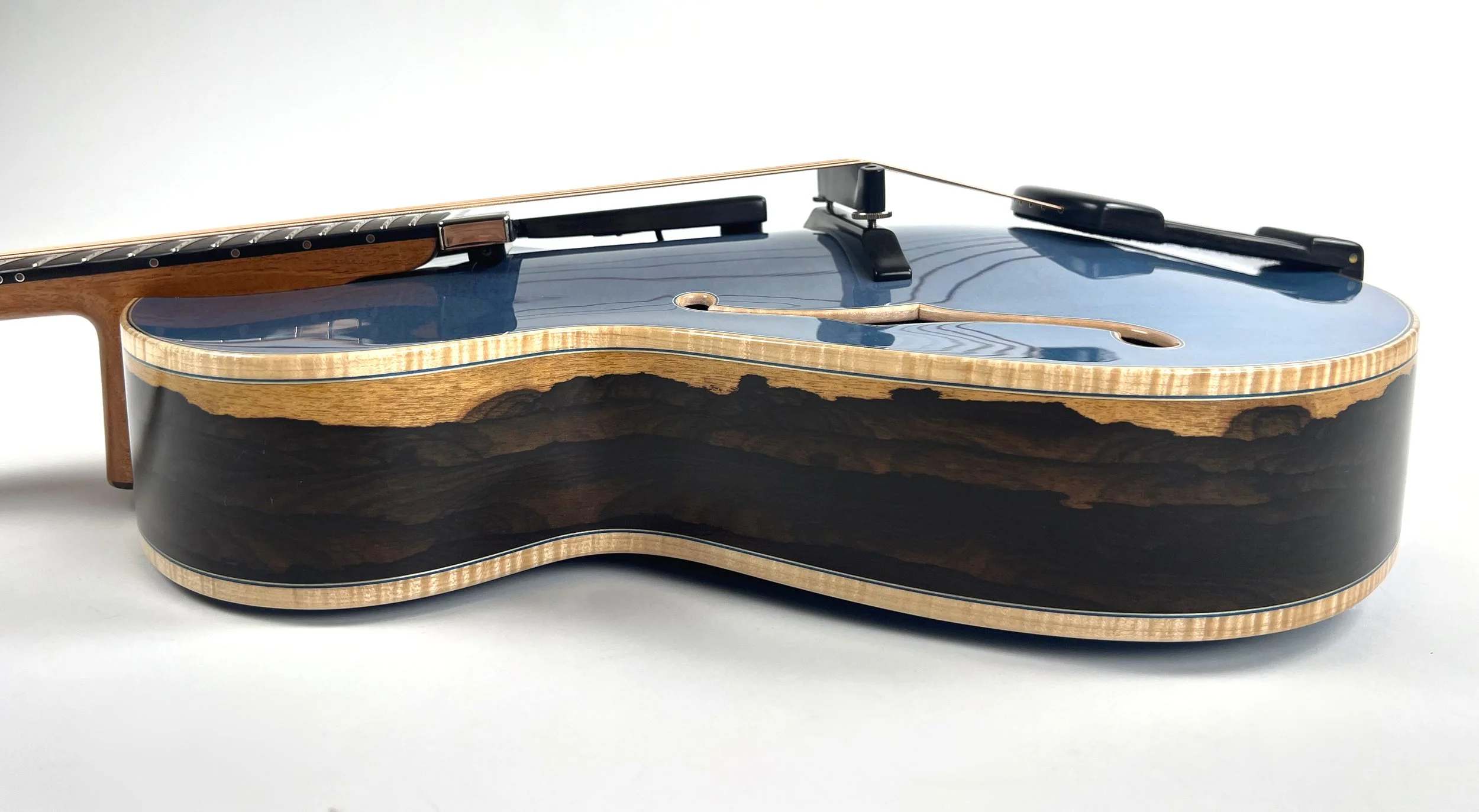

15” Archtop with Ziricote Sides
Materials
Top: Sitka Spruce
Back: Figured Big Leaf Maple
Sides : Ziricote
Neck: Figured Honduran Mahogany
*Carbon Fiber Reinforced with Hott Pink Dual Action Truss Rod*
Fretboard: West African Ebony
Binding: Figured Maple
Purfling: Blue/White Maple Veneer
Hinged Tailpiece: West African Ebony
(Carbon Fiber laminated)
Bridge & Saddle : West African Ebony
Pickguard: West African Ebony
Peghead Overlay: West African Ebony
Peghead Underlay: Ziricote
MW Logo Inlay: Sterling Silver inlay by Larry Robinson
Tuners: Chrome Gotoh 510 minis with Ebony Schaller Button
Body Finish: Blue with Nitrocellulose Lacquer
Neck Finish: Polyurethane Oil
Position Markers: Aluminum Tubing
Pickup: Chrome “Johnny Smith” Lollar Humbucker (Floating) Controls: Volume and Tone Knob (500K Audio Taper)
Specs
Florentine Cutaway
Lower Bout Width: 15”
Body Depth: 3.375”
Scale Length: 24.75”
Nut Width: 1.6875”
String Spacing at Bridge: 2.1875”
Fretboard Radius: 12”
Weight: 5lbs 4oz
