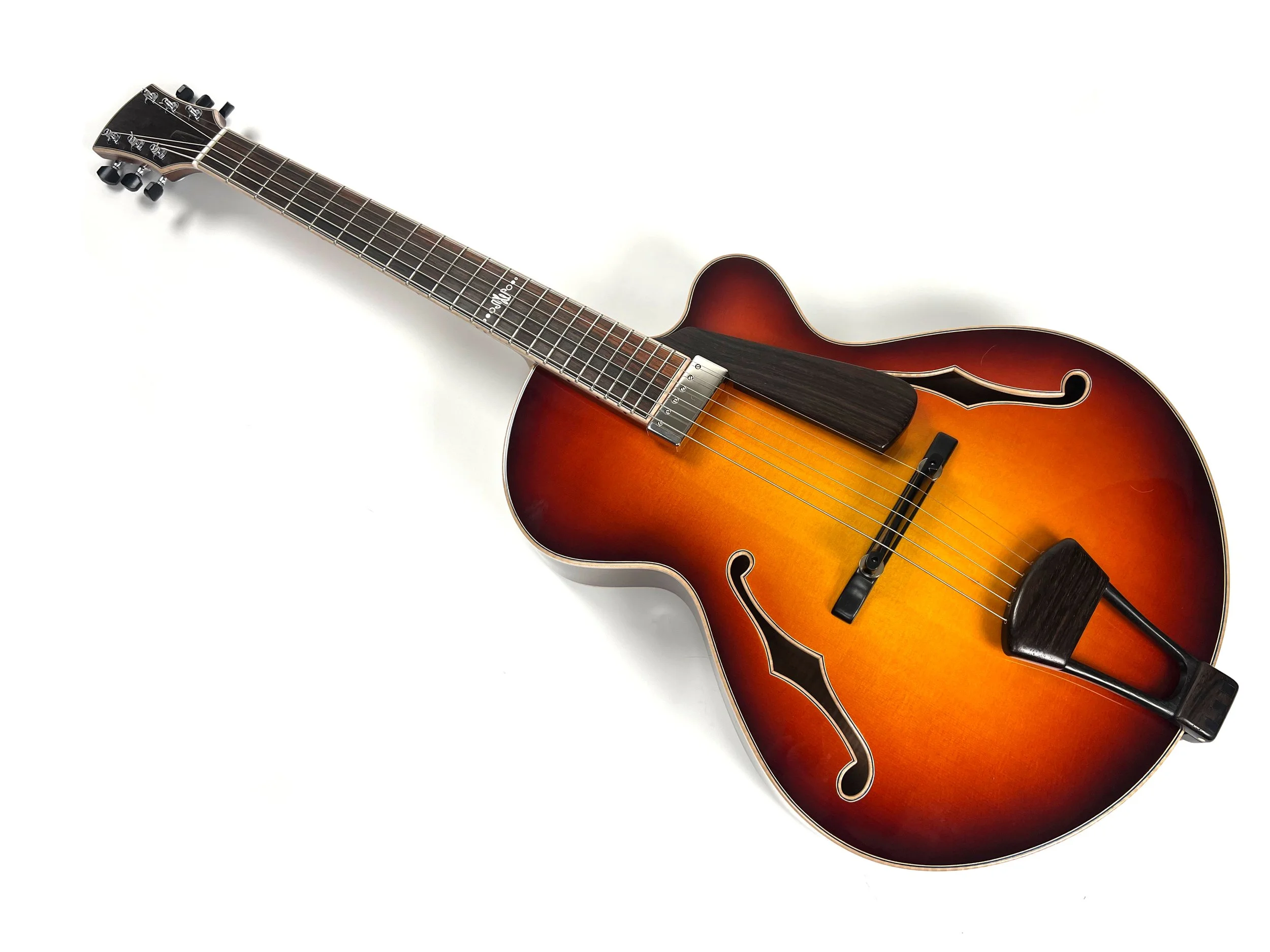

15.5” Archtop with Brazilian Rosewood Sides
Materials
Top: Sitka Spruce
Back: Figured Big Leaf Maple
Sides: Brazilian Rosewood
Neck: Honduran Mahogany
*Carbon Fiber Reinforced with Hott Pink Dual Action Truss Rod*
Fretboard: West African Ebony
Binding: Figured Maple
Purfling: White/Blue Maple Veneer
Hinged Tailpiece: Brazilian Rosewood (Carbon Fiber laminated)
Bridge & Saddle: West African Ebony
Pickguard: Brazilian Rosewood
Peghead Overlay: Brazilian Rosewood
Peghead Underlay: Brazilian Rosewood
MW Logo Inlay’s: Sterling Silver inlay by Larry Robinson
Tuners: Chrome Gotoh 510 minis with Ebony Schaller Button
Top Finish: Sunburst with Nitrocellulose Lacquer
Back/Sides/Neck Finish: Polyurethane Oil
Position Markers: Aluminum Tubing
Pickup: Chrome “Johnny Smith” Lollar Humbucker (Floating)
Controls: Volume and Tone Knob (500K Audio Taper)
Connection: 1/4” Output Jack
Specs
Florentine Cutaway
Lower Bout Width: 15.5”
Body Depth: 3.375”
Scale Length: 24.8125”
Nut Width: 1.717”
String Spacing at Bridge: 2.2”
Fretboard Radius: 14”
Case: Custom Calton Case
