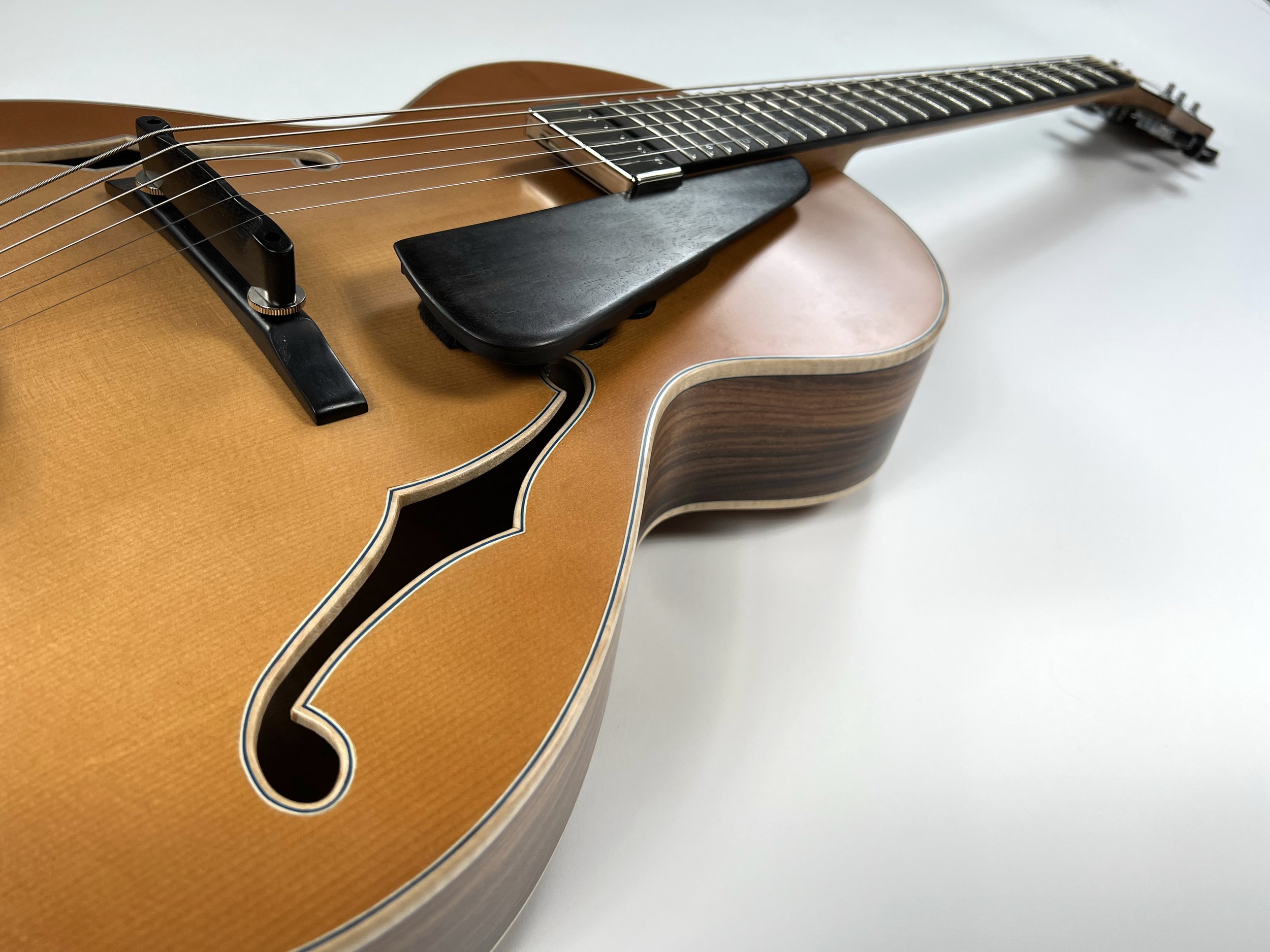

15.5” Archtop with Morado Rosewood Sides
Materials
Top: Sitka Spruce
Back: Figured Big Leaf Maple
Sides: Morado Rosewood
Neck: Honduran Mahogany
*Carbon Fiber Reinforced with Hott Pink Dual Action Truss Rod*
Fretboard: West African Ebony
Binding: Figured Maple
Purfling: Blue/White Veneer
Hinged Tailpiece: West African Ebony (Carbon Fiber laminated)
Bridge & Saddle: West African Ebony
Pickguard: West African Ebony
Peghead Overlay: West African Ebony
Peghead Underlay: Morado Rosewood
MW Logo Inlay: Sterling Silver inlay by Larry Robinson
Tuners: Chrome Gotoh 510 minis with Ebony Schaller Button
Top Finish: Honey Tea Toast w/ Satin Nitrocellulose Lacquer
Back/Sides/Neck Finish: Polyurethane Oil
Position Markers: Aluminum Tubing
Pickup: Chrome “Johnny Smith” Lollar Humbucker (Floating)
Controls: Volume and Tone Knob (500K Audio Taper)
Connection: 1/4” Output Jack
Specs
Non Cutaway
Lower Bout Width: 15.5”
Body Depth: 3”
Scale Length: 24.9”
Nut Width: 1.6875”
String Spacing at Bridge: 2.1875”
Fretboard Radius: 14”
Case: Beetle Green Visesnut
