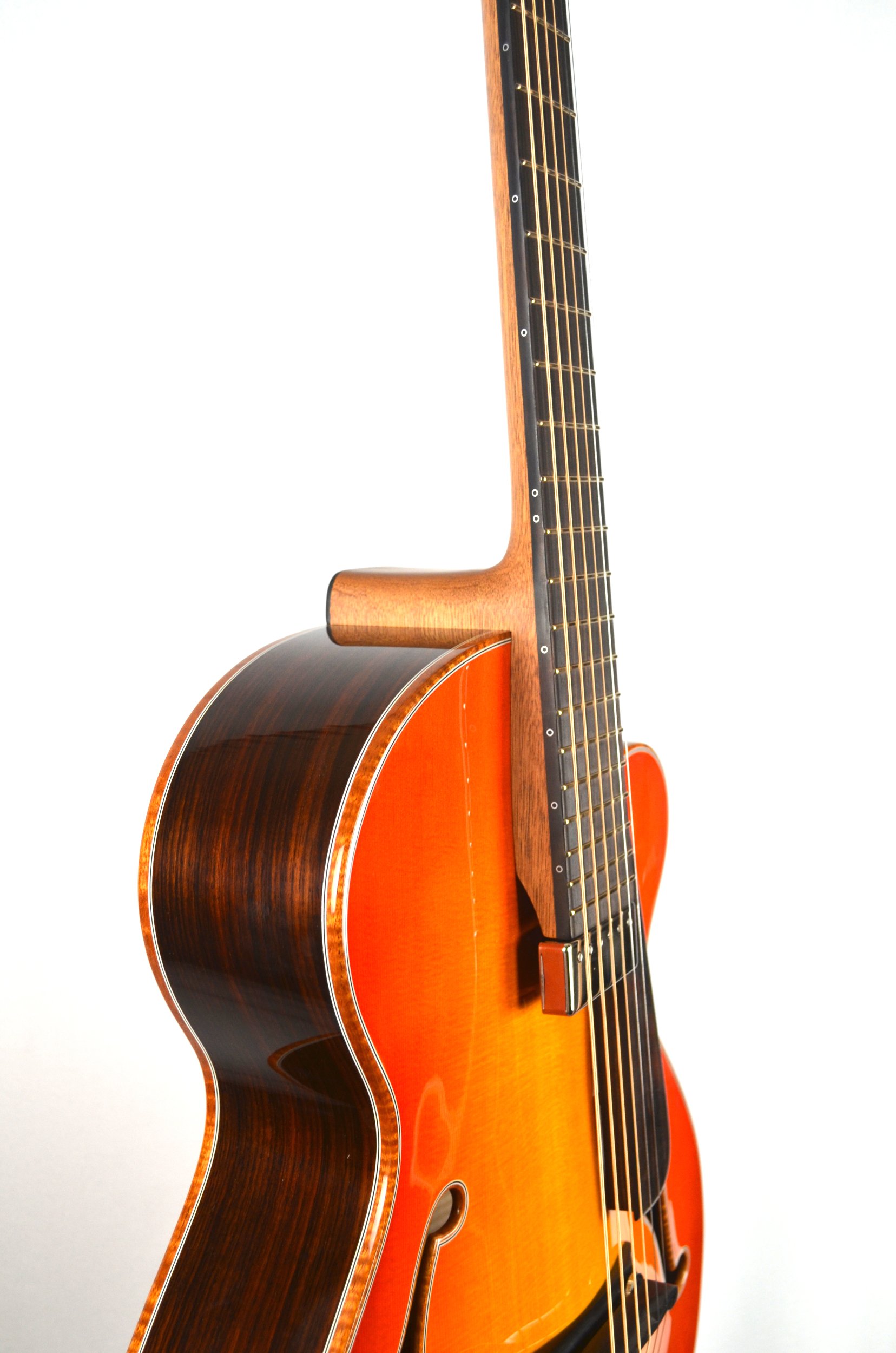

15.5” Archtop with Rosewood Sides
Materials
Top: Sitka Spruce

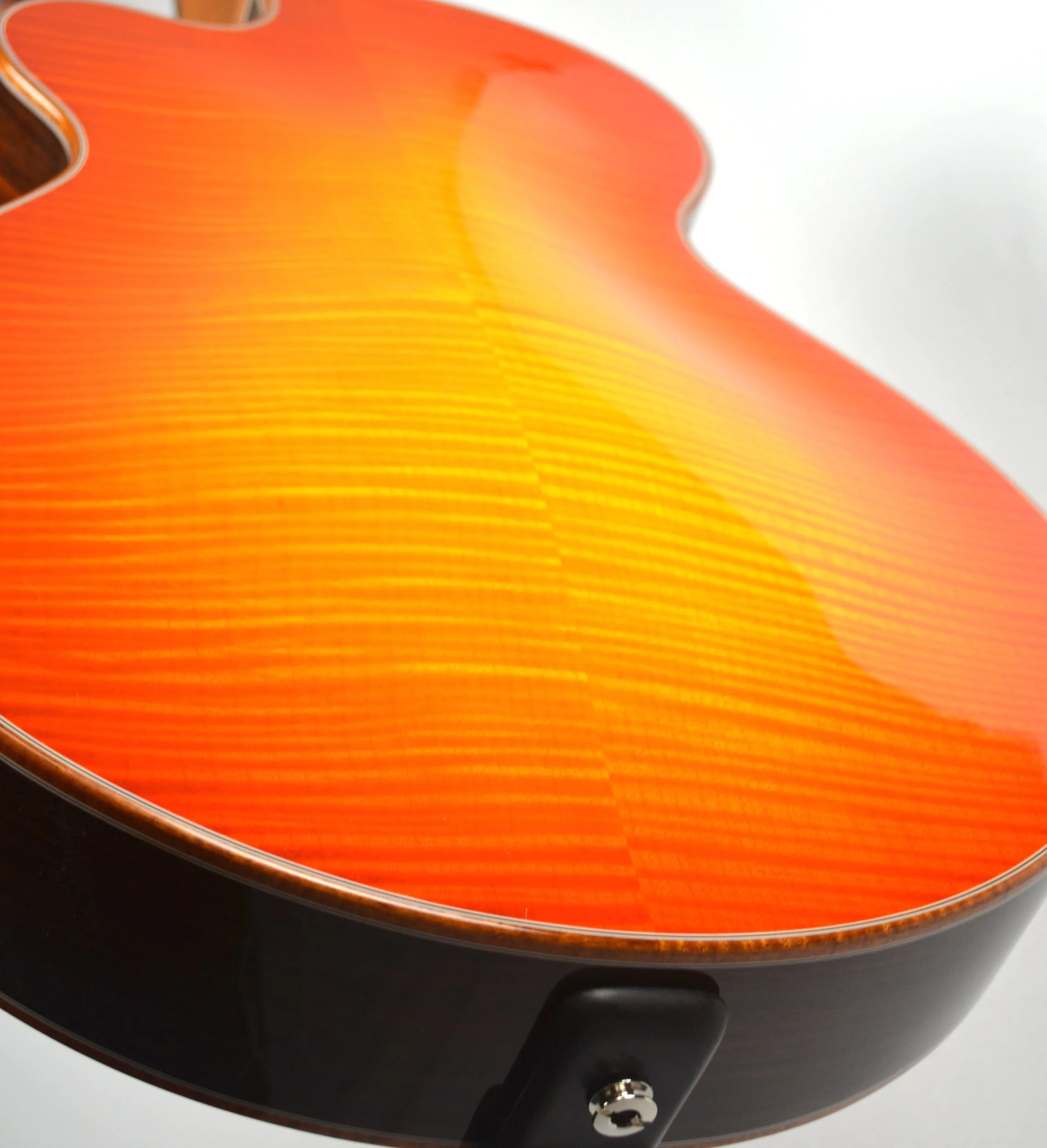

Back: Figured Big Leaf Maple
Sides: Indian Rosewood
Neck: Honduran Mahogany
*Carbon Fiber Reinforced with Hott Pink Dual Action Truss Rod*
Fretboard: Macassar Ebony
Binding: Figured Mahogany
Purfling: white/black/white ABS Plastic
Hinged Tailpiece: West African Ebony capped with Macassar Ebony (Carbon Fiber laminated)

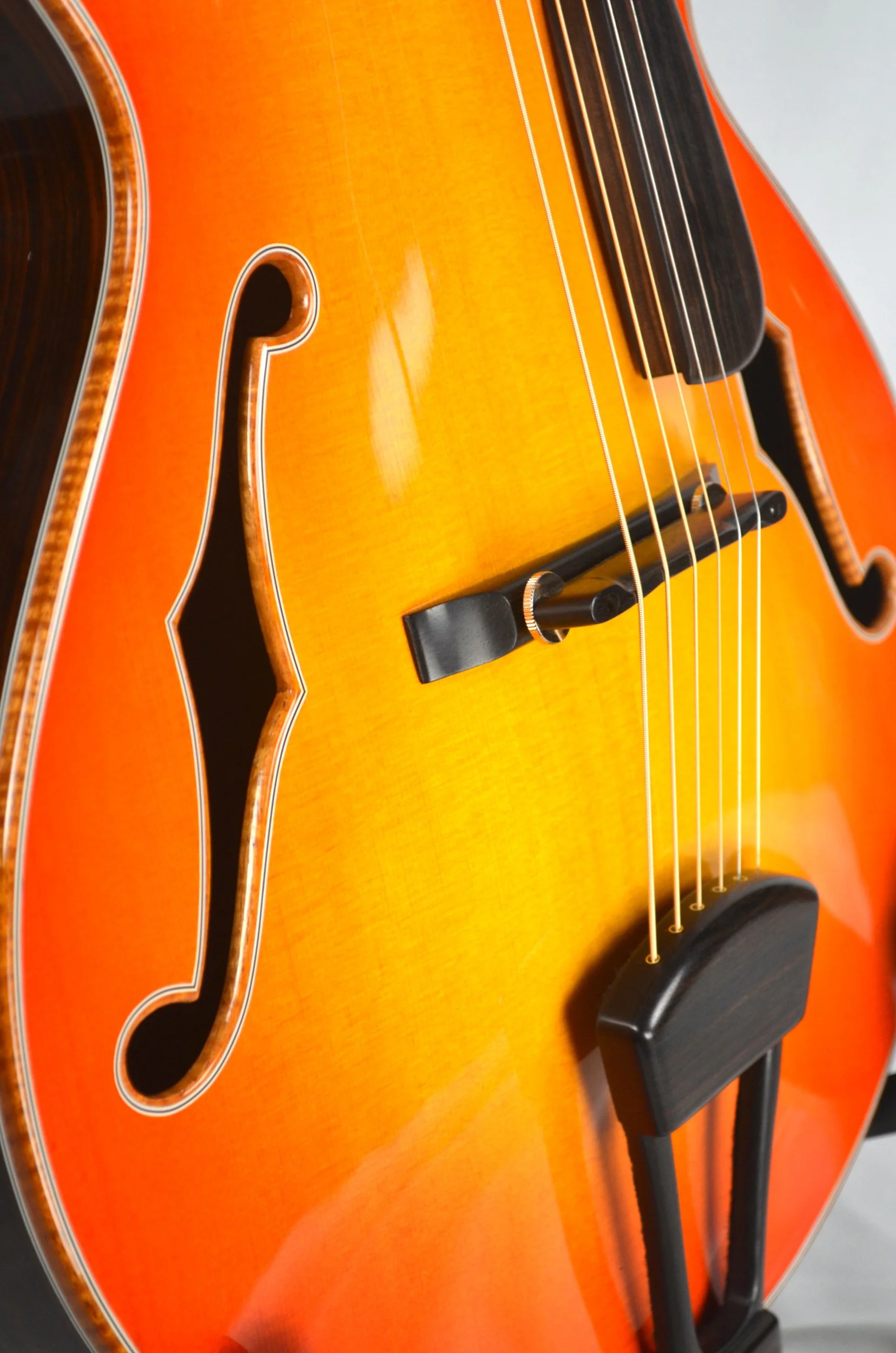

Bridge & Saddle: West African Ebony
Pickguard: Macassar Ebony
Peghead Overlay: Macassar Ebony
Peghead Underlay: Indian rosewood
MW Logo Inlay: Sterling Silver inlay by Larry Robinson
Tuners: Chrome Gotoh 510 minis with Ebony Schaller Button
Body Finish: Lemon Yellow/Navel Orange Burst with
Nitrocellulose Lacquer
Neck Finish: Polyurethane Oil
Position Markers: Aluminum Tubing
Pickup: Chrome “Johnny Smith” Lollar Humbucker (Floating)
Controls: Volume and Tone Knob (500K Audio Taper)
Connection: 1/4” Output Jack
Specs
Venetian Cutaway
Lower Bout Width: 15.5”
Body Depth: 3.25”
Scale Length: 24.75”
Nut Width: 1.78125”
String Spacing at Bridge: 2.25”
Fretboard Radius: 16”
Case: Visesnut Case
Unplugged performance by Dorian Michael on his 15.5” Archtop. “Blues Monk” by Thelonius Monk.
