15” Archtop with Ovangkol Sides
Materials
Top: Sitka Spruce
Back: Big Leaf Maple

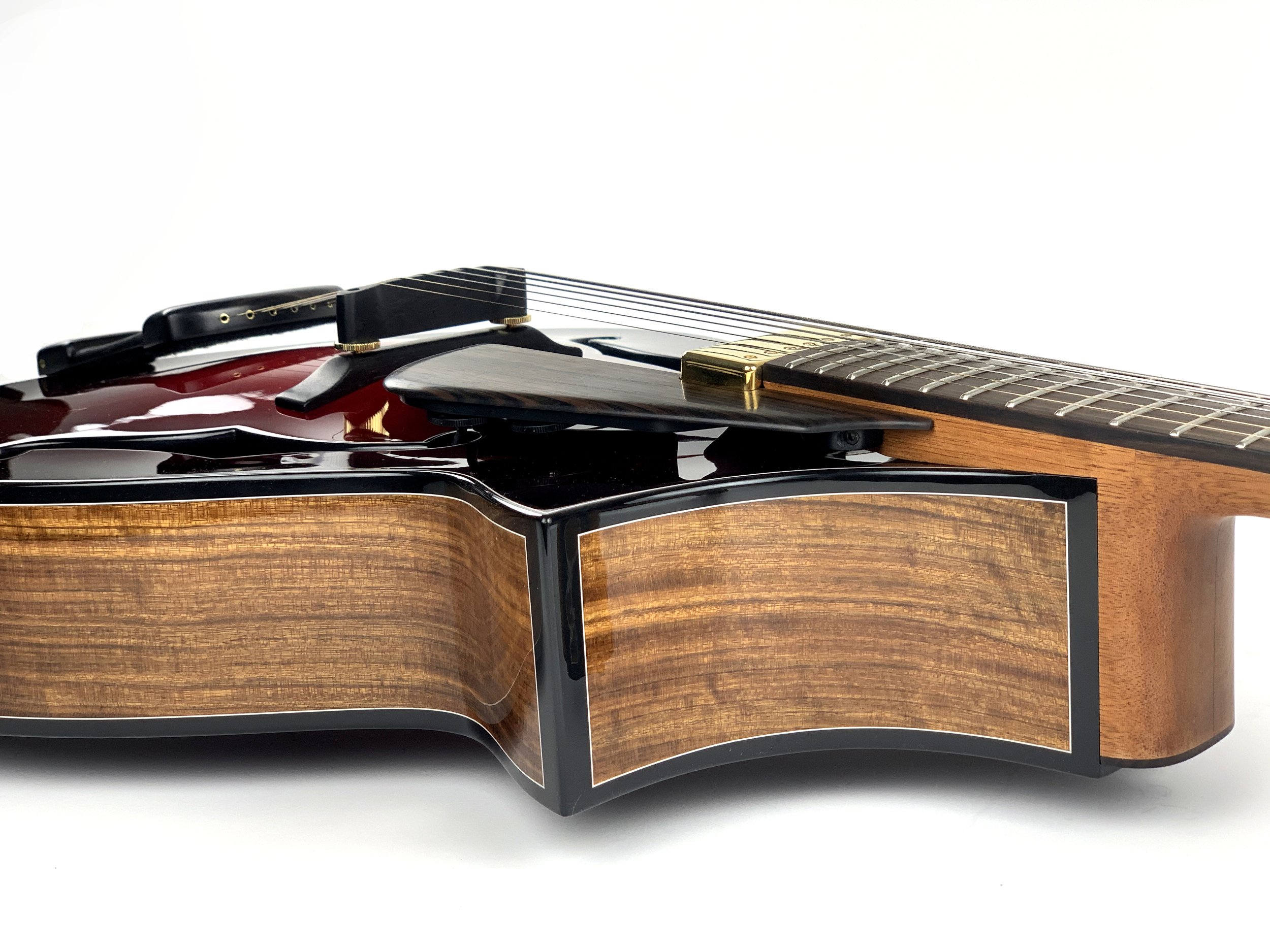

Sides: Figured Ovangkol
Neck: Honduran Mahogany
*Carbon Fiber Reinforced with Hott Pink Dual Action Truss Rod* Fretboard: Macassar Ebony
Binding: Black ABS Plastic
Purfling: Single White ABS Plastic
Hinged Tailpiece: Macassar Ebony(Carbon Fiber laminated) Bridge & Saddle: West African Ebony
Pickguard: Macassar Ebony
Peghead Overlay: Macassar Ebony
Peghead Underlay: Figured Ovangkol
MW Logo Inlay: Sterling Silver inlay by Will Hylton
Tuners: Chrome Gotoh 510 minis with Ebony Schaller Button Body Finish: Cabernet Burst with Nitrocellulose Lacquer
Neck Finish: Polyurethane Oil
Position Markers: Aluminum Tubing
Pickup: Gold “Johnny Smith” Lollar Humbucker (Floating) Controls: Volume and Tone Knob (500K Audio Taper)
Connection: 1/4” Output Jack
Specs
Florentine Cutaway
Lower Bout Width: 15”
Body Depth: 3.25”
Scale Length: 24.8125”
Nut Width: 1.6875”
String Spacing at Bridge: 2.125”
Fretboard Radius : 14”
Case: Custom Calton Case
My good friend Tommy Benson with his custom MW Archtop
